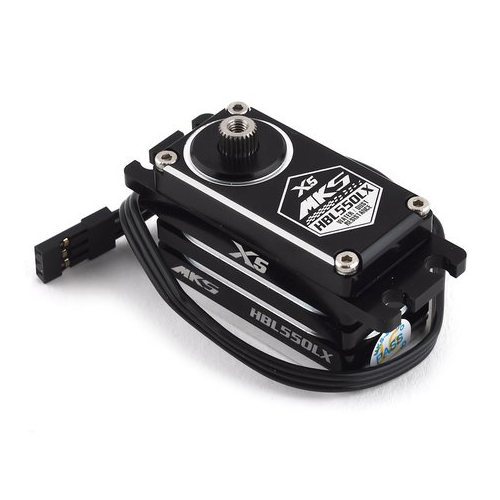

MKS HBL550 Brushless Titanium Gear High Torque Digital Servo (High Voltage)

Description

MKS-HBL550
Dead Band  0.001ms (Default)
Control System  +Pulse Width Control
Working Frequence 1520μs / 333hz
Operating Voltage  5 ~ 8.4 Volts
Operating Temperature Range  -10 to + 60 Degree C
Operating Speed  (6V) 0.117 sec/60° degrees at no load
Operating Speed  (7.4V) 0.094 sec/60° degrees at no load
Operating Speed  (8.4V) 0.085 sec/60° degrees at no load
Stall Torque  (6V) 402oz/in (29 kg/cm)
Stall Torque (7.4V) 499 oz/in (36 kg/cm)
Stall Torque  (8.4V) 527 oz/in (38 kg/cm)
Motor Type  Brushless Motor
Potentiometer  Drive Indirect Drive
Bearing Type  12×8 mm Double bearings
Gear Type  Alloy gear
Dimension s 40 x 20 x 38.5 mm
Weight  79.5 g
